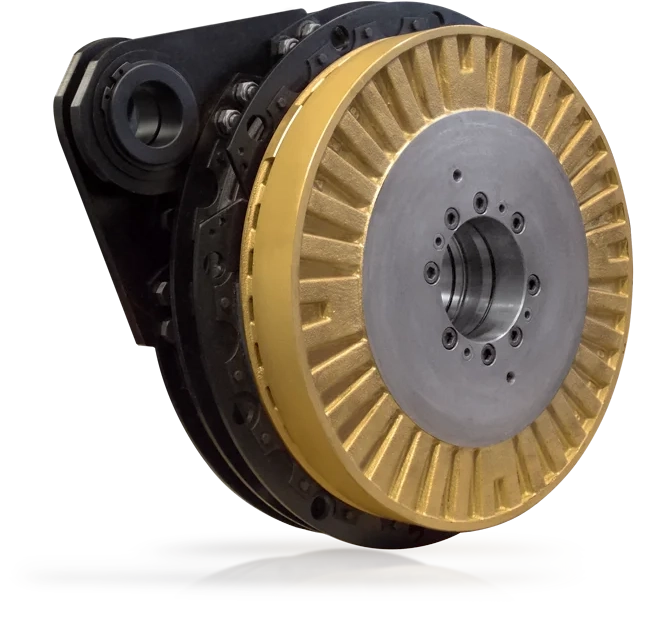

AC/DC series

Combined Clutch/Brake unit with pneumatic control

  • Clutch Torque (Nm) 120,000
  • Brake Torque (Nm) 50,000
  • Rotation (rpm) 1,800
  • Bore diameter (mm) 45-240
  • Locking device

    Allowed on both sides

  • Strength

    The best on the market

Main features

This series is a combined Clutch/Brake unit with pneumatic control and dry friction material. It’s generally used to engage and brake any industrial machine (eccentric presses, knuckle joint presses, metal stamping, edge banders, punching presses, deep drawing press machines, mechanical shears, hot forging, etc…).
It is the most suitable product for machines that require high performance and maximum reliability.
It represents the latest and most recent evolution of our compact groups, the result of over thirty years of know-how and experience in the sector.
This series is certainly one of the strongest, compact and versatile Clutch/Brake units on the international market, it has no competitors in terms of performance. The clamping to the shaft is carried out with keyways or with clamping device on the Clutch side and on the Brake side.

▪️100% design in Italy
▪️Tested before delivery
▪️Customizable on request
▪️Always on stock!

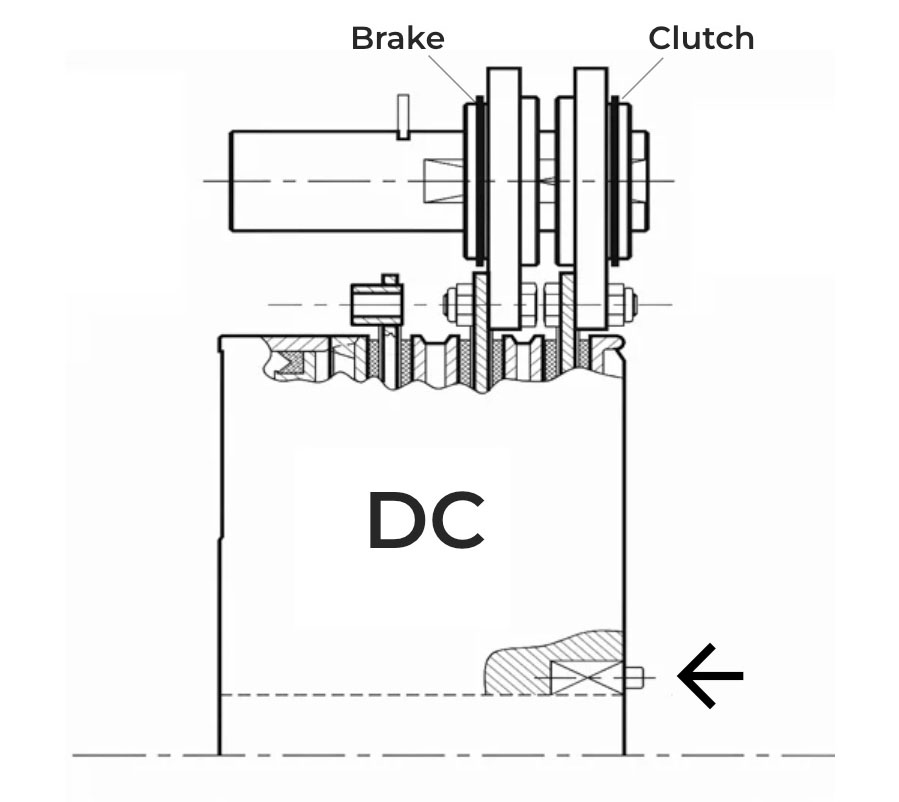

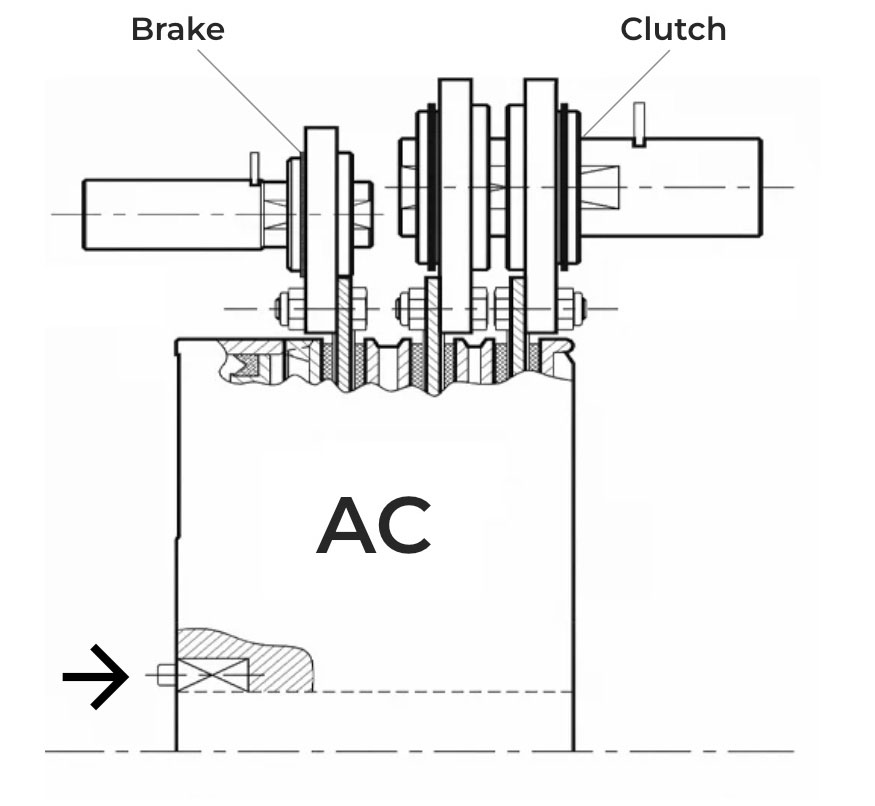

Comparison AC and DC

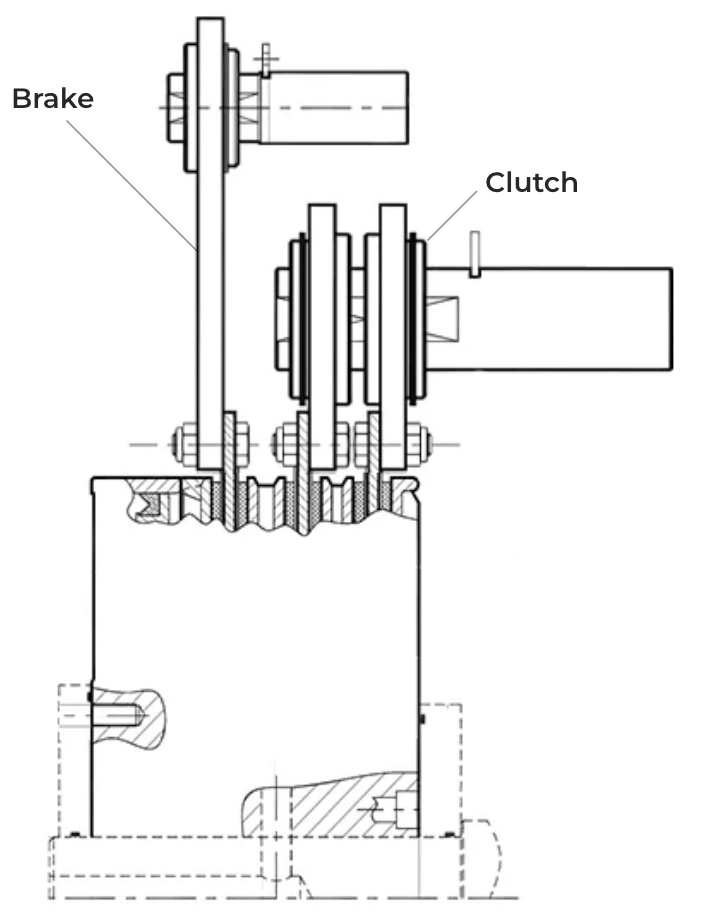

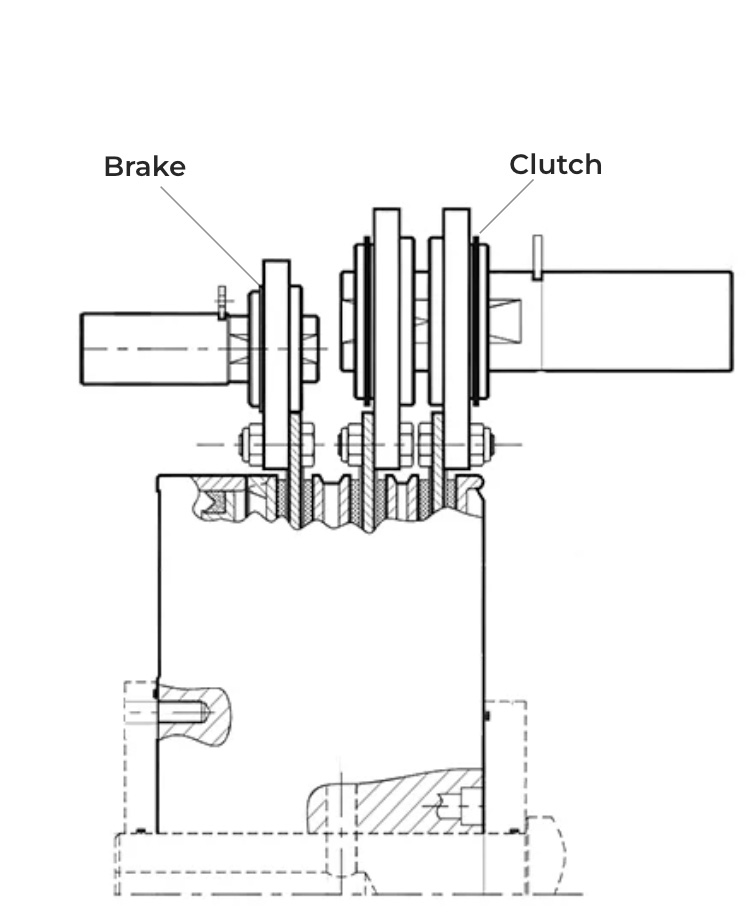

AC - Mounting examples

  • AC-CC

  • AC-CS

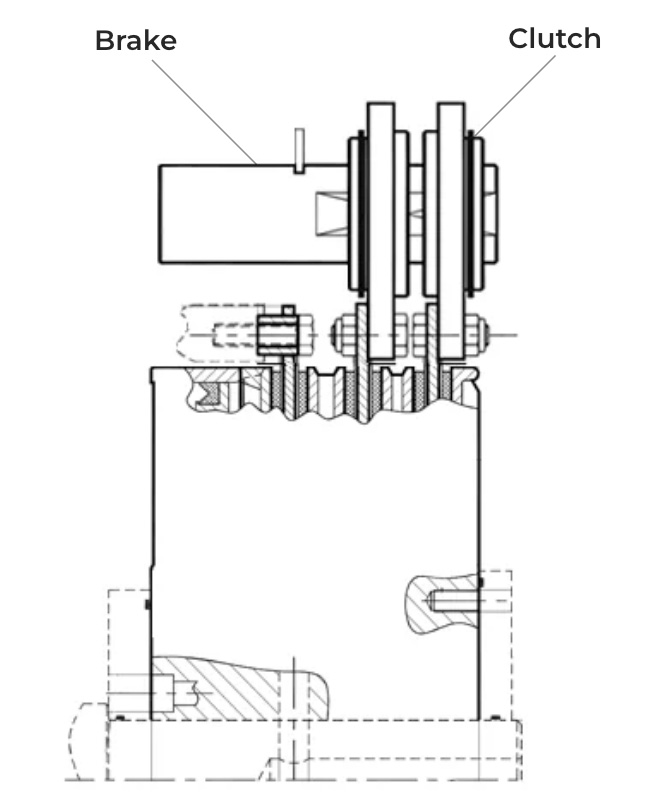

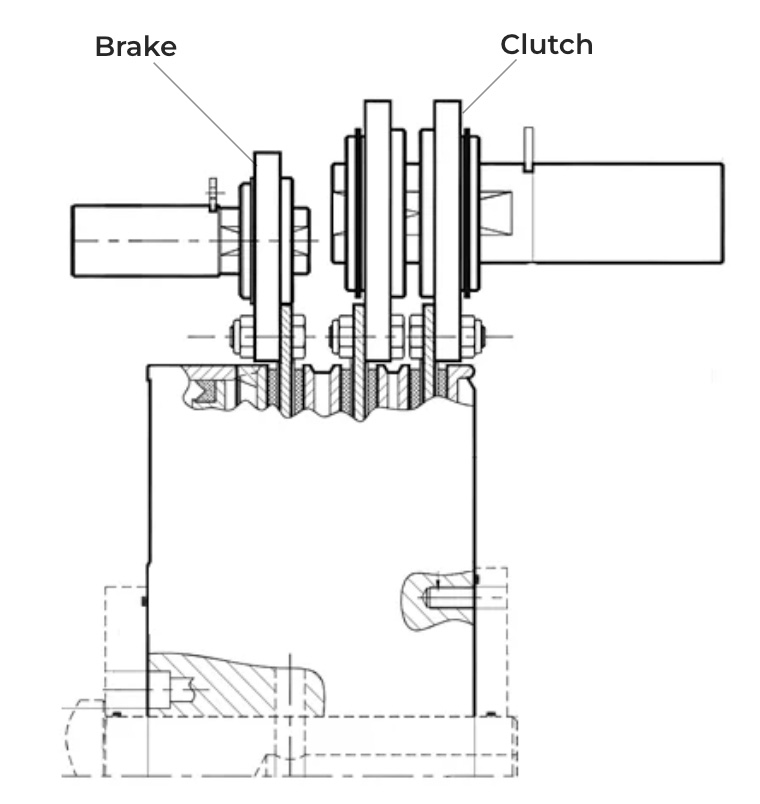

DC - Mounting examples

  • DC-CC

  • DC-CS

Option with air inlet flange
