AS/DS series

Combined Clutch/Brake unit with pneumatic control

  • Clutch Torque (Nm) 120,000
  • Brake Torque (Nm) 50,000
  • Rotation (rpm) 1,800
  • Bore diameter (mm) 45-240
  • Locking device

    Allowed on both sides

  • Punto di forza

    The best on the market

Main features

This series is a combined Clutch/Brake unit with pneumatic control and dry friction material. It’s generally used to engage and brake any industrial machine (eccentric presses, knuckle joint presses, metal stamping, edge banders, punching presses, deep drawing press machines, mechanical shears, hot forging, etc…). It represents the second evolution of the KB series. It is a pneumatic clutch/brake unit with considerably reduced dimensions and inertia. The clampings to the shaft are designed (and not adapted) for the locking device fitting on brake or clutch side as to meet customer requirements.
It is certainly the best Clutch on the market, it has no competitors in terms of performance.

▪️100% design in Italy
▪️Tested before delivery
▪️Customizable on request
▪️Always on stock!

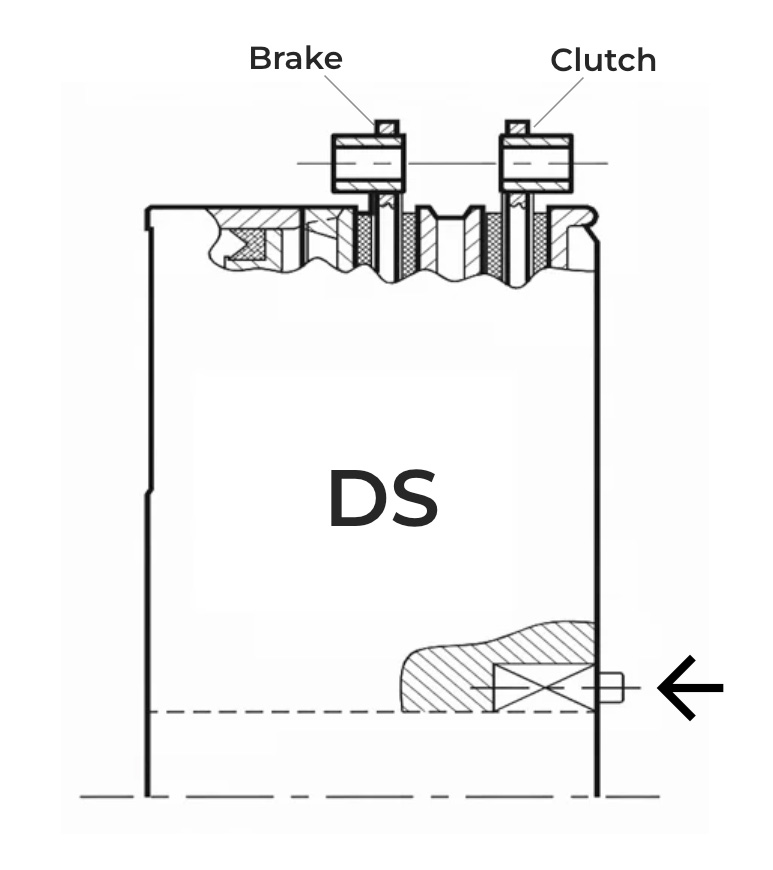

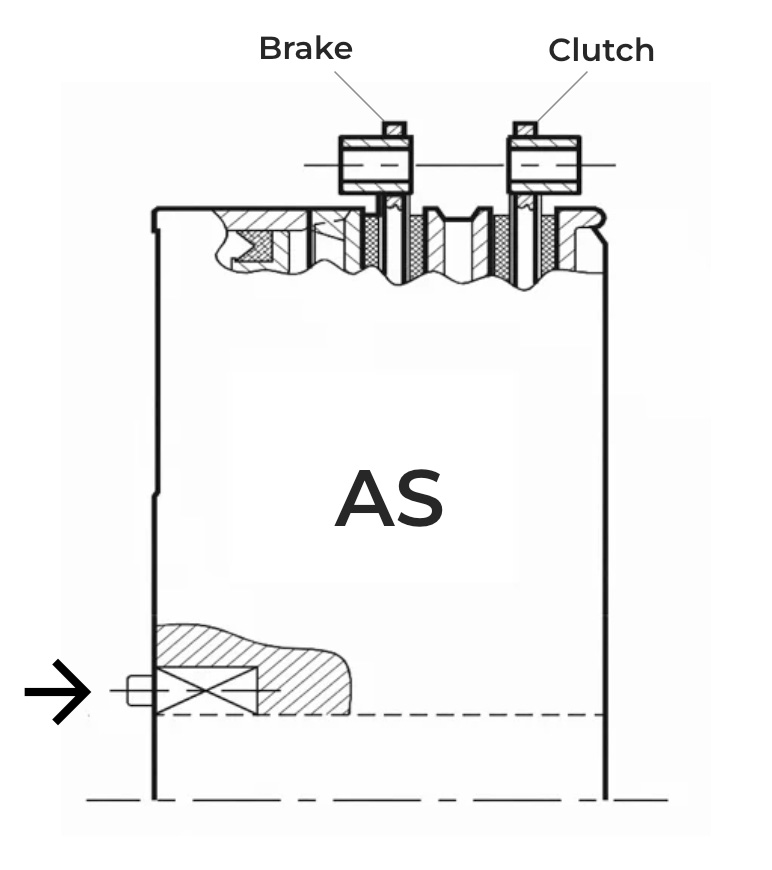

Comparison AS and DS

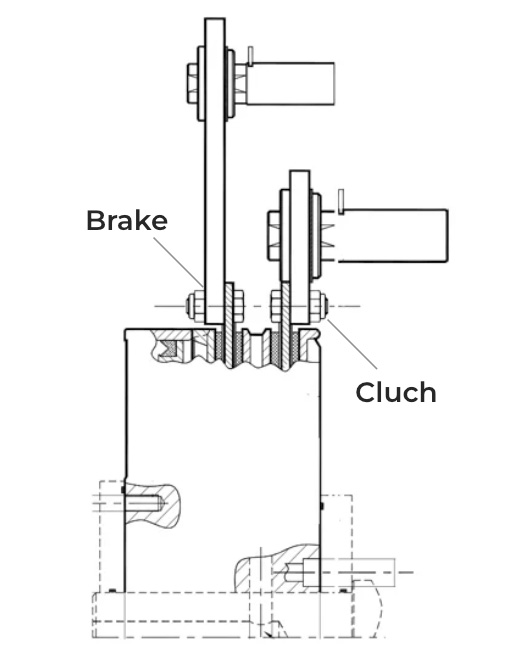

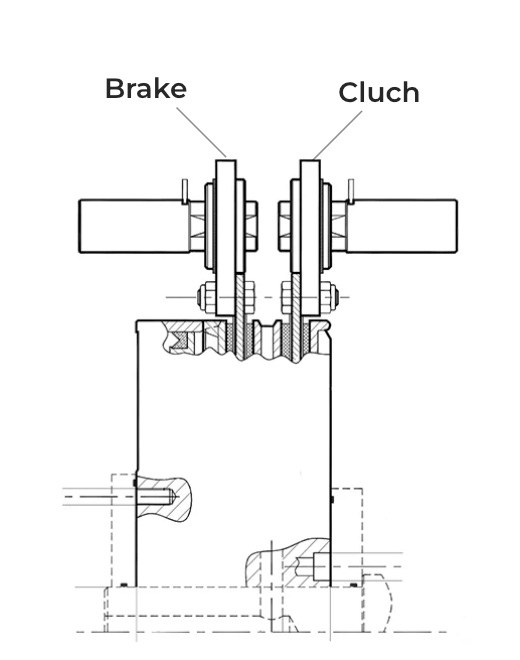

AS - Mounting examples

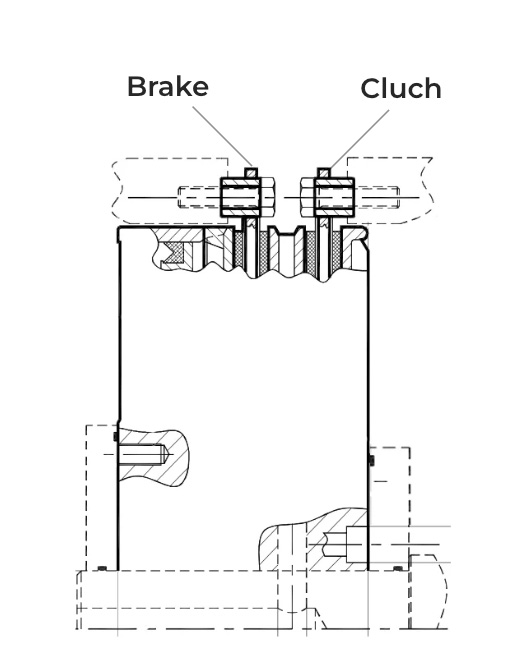

  • AS-BBL

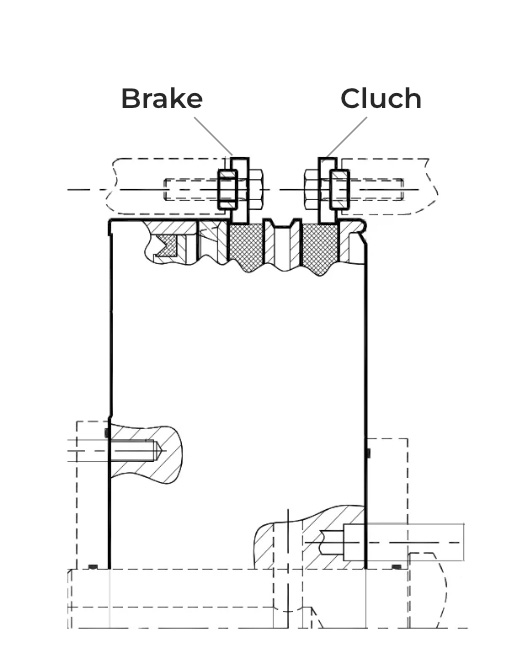

  • AS-BBT

  • AS-CC

  • AS-CS

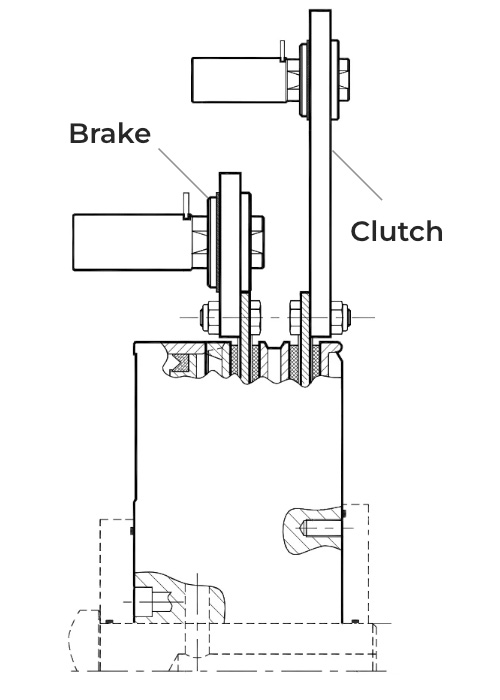

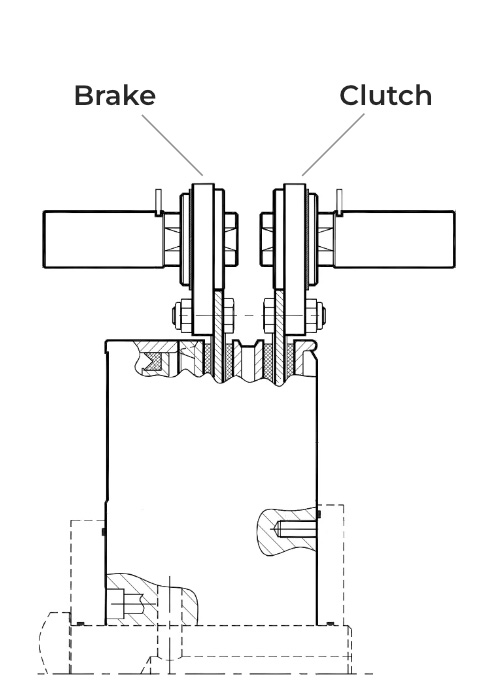

DS - Mounting examples

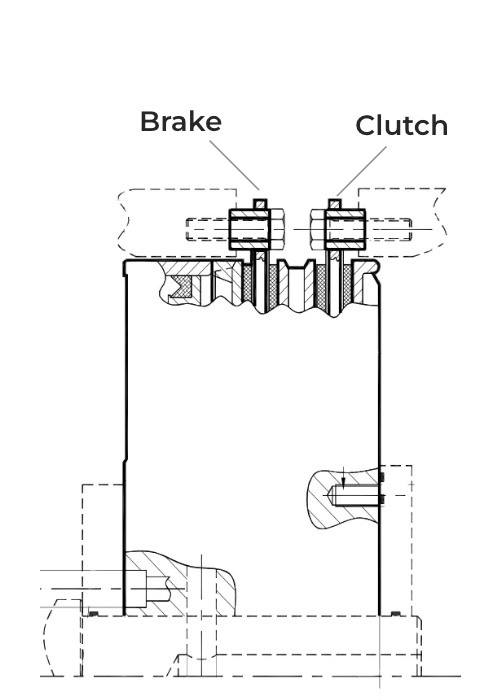

  • DS-BBL

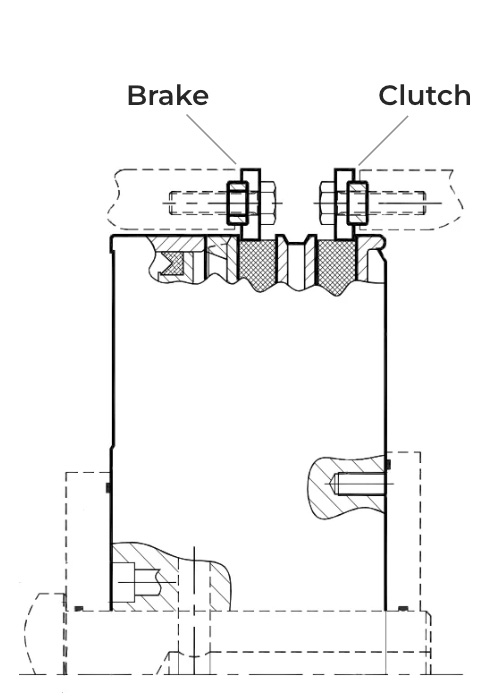

  • DS-BBT

  • DS-CC

  • DS-CS

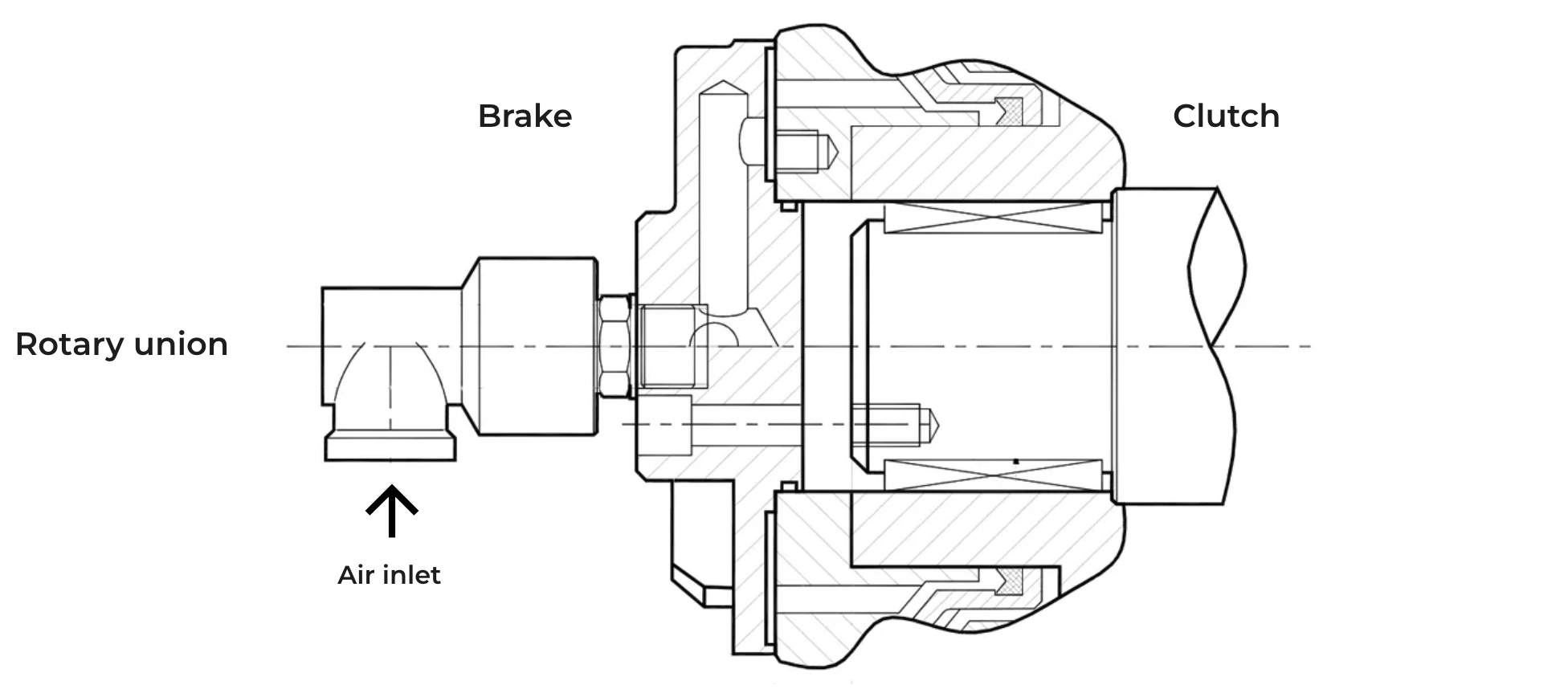

Option with air inlet flange
