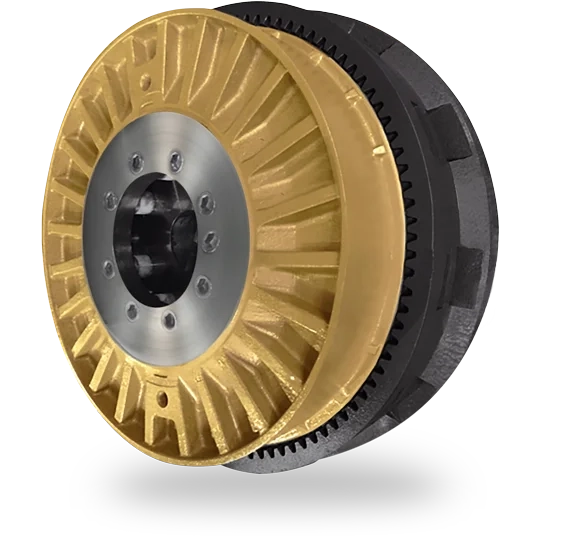

CK series
Multi-Plate Clutch with pneumatic control
- Clutch Torque (Nm) 80,000
- Brake Torque (Nm) 1,200
- Bore diameter (mm) 85-170
-
Locking device
Not allowed
-
Strength
Low negative inertia
Main features
The CK is a multi-plate Clutch, dry running and with a pneumatic control on the shaft. Its static torques are available up to 75,000 Nm and dynamic torques up to 65,000 Nm. They are often used to connect an electric motor to a drive, but not only.
▪️100% design in Italy
▪️Tested before delivery
▪️Customizable on request
▪️Always on stock!
▪️Tested before delivery
▪️Customizable on request
▪️Always on stock!
OMulti-Plate Clutch with pneumatic control

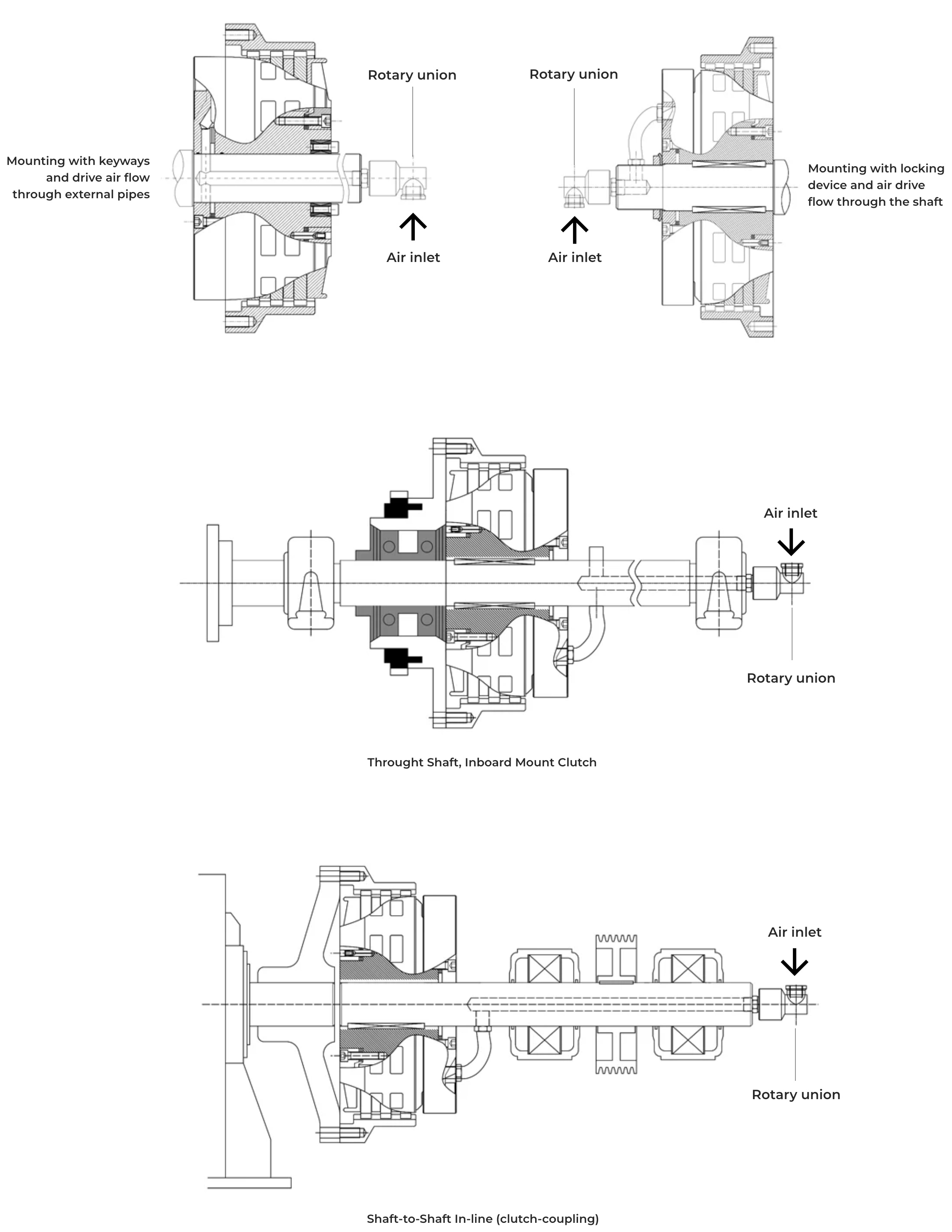

Mounting examples
