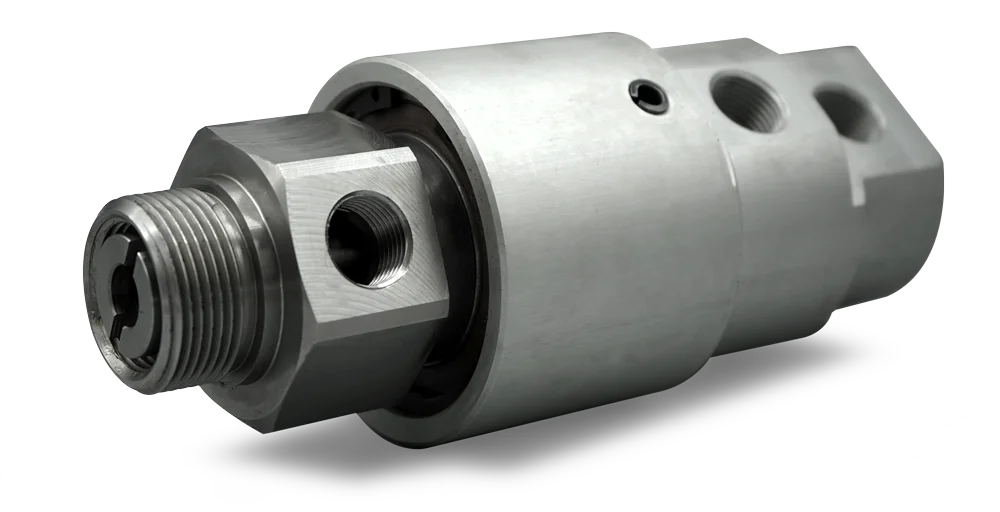

D series

Dual flow independent
rotary union

Rotation (rpm) - Standard versions

1,000

Rotation (rpm) - Special versions

2,500

Max temperature (°C) - Air

100

Max pressure (bar)
Air, water, oil, fluids

11

Max pressure (mm/hg) - Vacuum

700

Main features

The standard supply provides the rotating nipple threaded cylindrical GAS. On the request we supply other standard. Standard seal (graphite vs. stainless steel) in used for air and for water or hydraulic oil, seal of silicon carbide vs. silicon carbide in suggested. For liquid at pressure more than 60 bar (870 PSI) please contact our technician.
▪️100% design in Italy
▪️Customizable on request
▪️Special versions for high pressures
▪️Available threads for different standards
▪️Always on stock!
