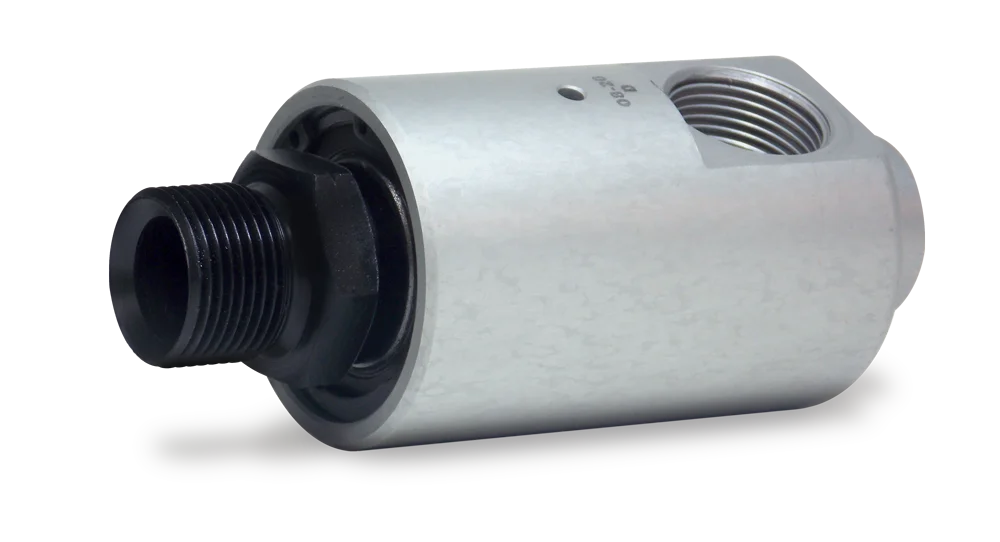

K Series

Universal rotary union with rotary seals

Rotation (rpm)

520

Max temperature (°C)

110

Max pressure (bar)

70

Main features

The K Series is designed for pressure up to 70 bar. The seal is made in Viton, that can be changed based on chemical compatibilty of used fluid. The fixed external part is made of anodized aluminum and the rotary part is made of carbon steel hardened with anticorrosion. On request, can be produced by stainless steel AISI 316/304 for food industry or oxygen use.
▪️100% design in Italy
▪️Special versions in AISI 316/304 stainless steel
▪️Customizable on request
▪️Available threads for different standards
▪️Always on stock!

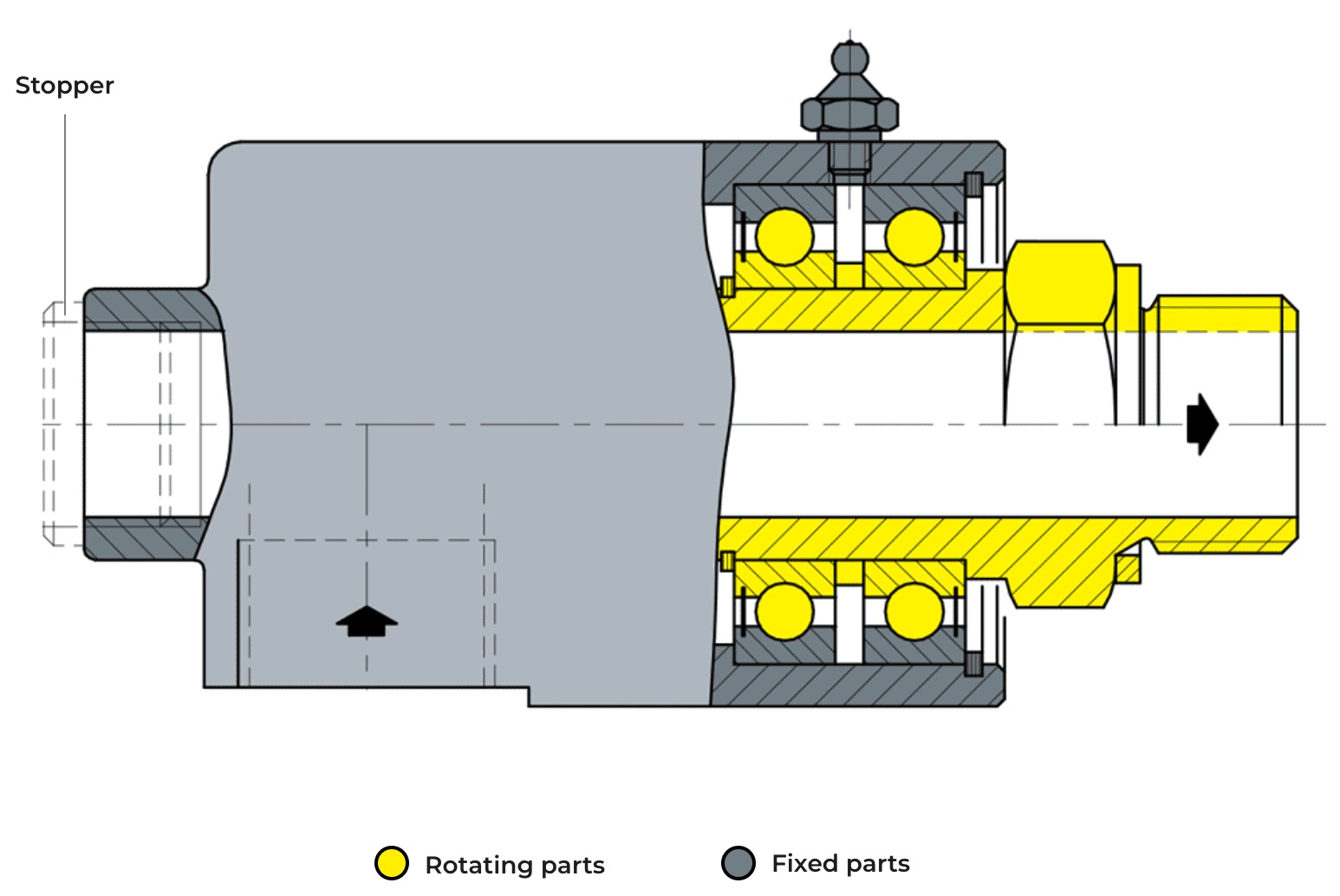

K Series - Universal rotary union with rotary seals
