KB series

Combined Clutch/Brake unit with pneumatic control

  • Clutch Torque (Nm) 35,000
  • Brake Torque (Nm) 24,000
  • Rotation (rpm) 3,200
  • Bore diameter (mm) 16-140
  • Locking device

    Not allowed

  • Strength

    The cheapest solution on the market

Main features

This series is a combined Clutch/Brake unit with pneumatic control and dry friction material. It’s generally used to engage and brake any industrial machine (eccentric presses, knuckle joint presses, metal stamping, edge banders, punching presses, deep drawing press machines, mechanical shears, hot forging, etc…).
It’s our traditional series, historical for the company, sold in tens of thousands of copies worldwide and extremely economical.
All the products are in cast iron construction, transmissible torques from 75 Nm to 35,000 Nm. The clamping to the shaft is carried out only with keyways.

▪️100% design in Italy
▪️Tested before delivery
▪️Customizable on request
▪️Always on stock!

Mounting examples

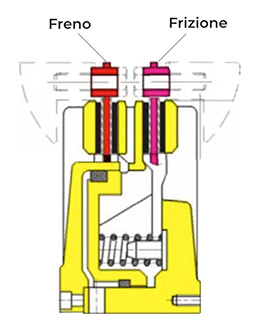

  • KB-BBL

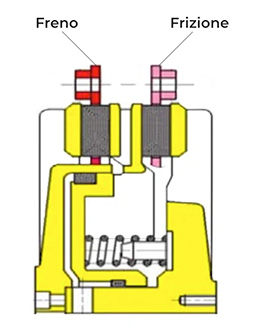

  • KB-BBT

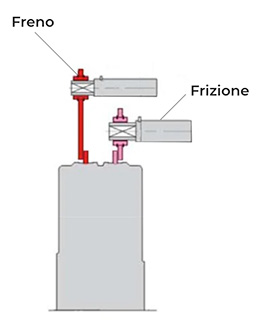

  • KB-CS

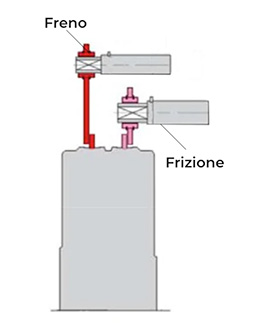

  • KB-CC

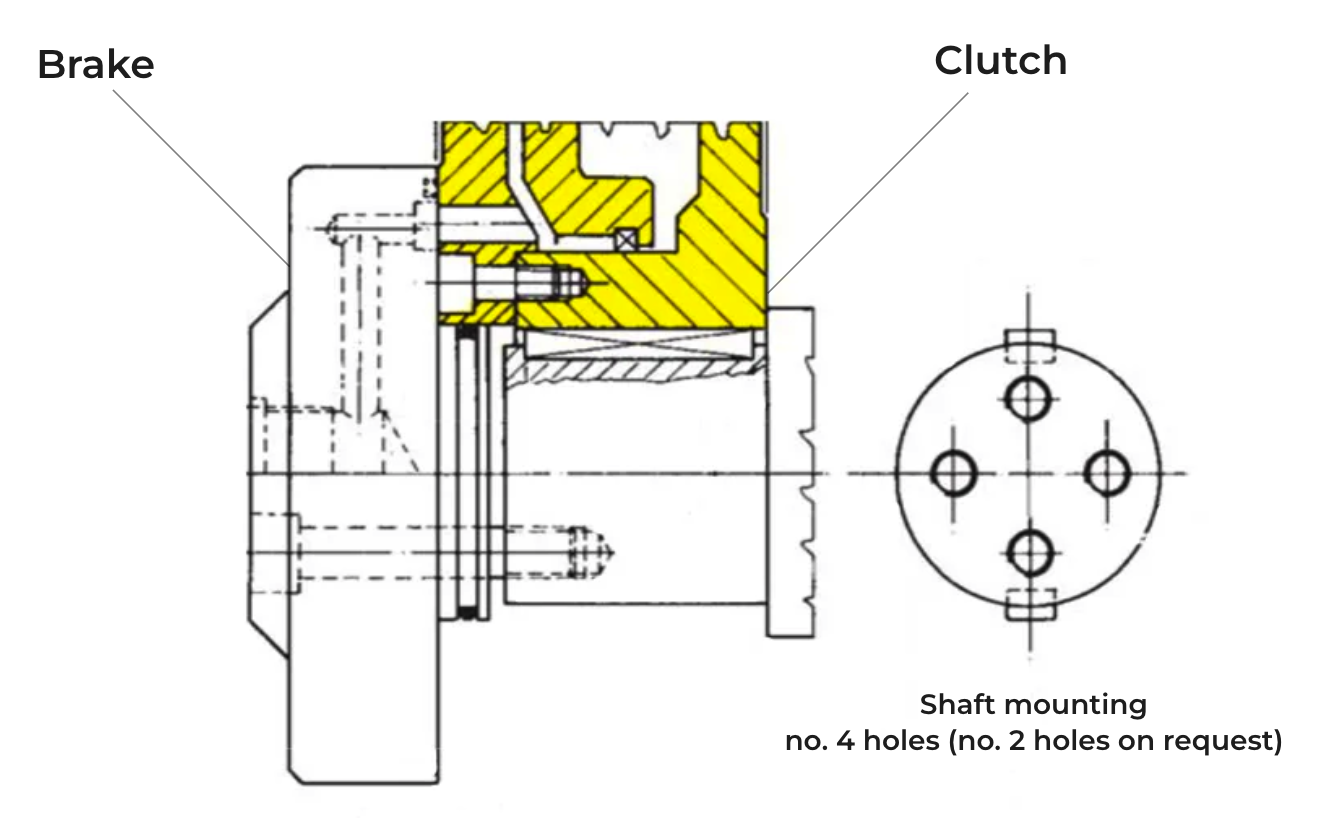

Option with air inlet flange
