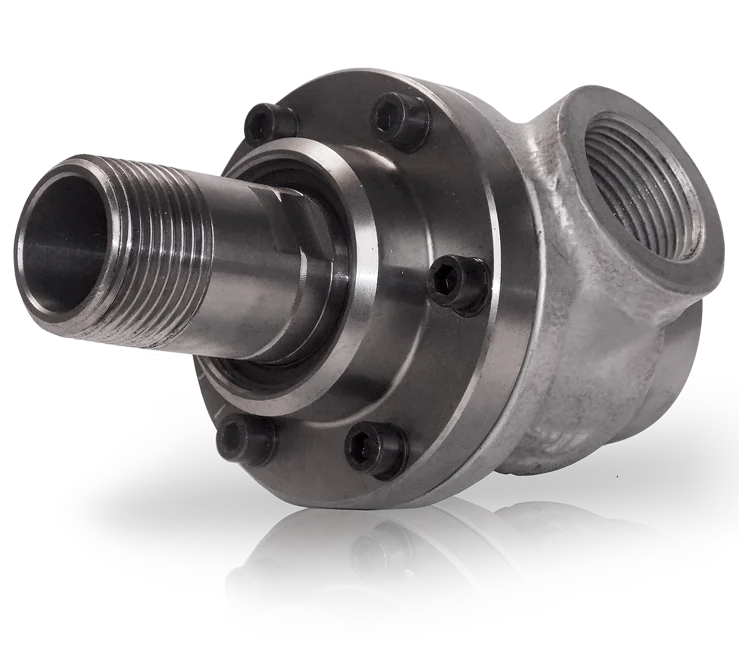

N series
ROTARY UNION FOR STEAM
OR HOT OIL
Rotation (rpm)
500
Max temperature (°C)
316
Max pressure (bar)
25
Main features
The N series is divided into two categories:
▪️FOR STEAM - The rotary part and flange are made of stainless steel.
▪️FOR HOT OIL - The entire rotary union is made of cast iron.
For both categories, the seal and bearings are made with impregnated graphite.
▪️FOR STEAM - The rotary part and flange are made of stainless steel.
▪️FOR HOT OIL - The entire rotary union is made of cast iron.
For both categories, the seal and bearings are made with impregnated graphite.

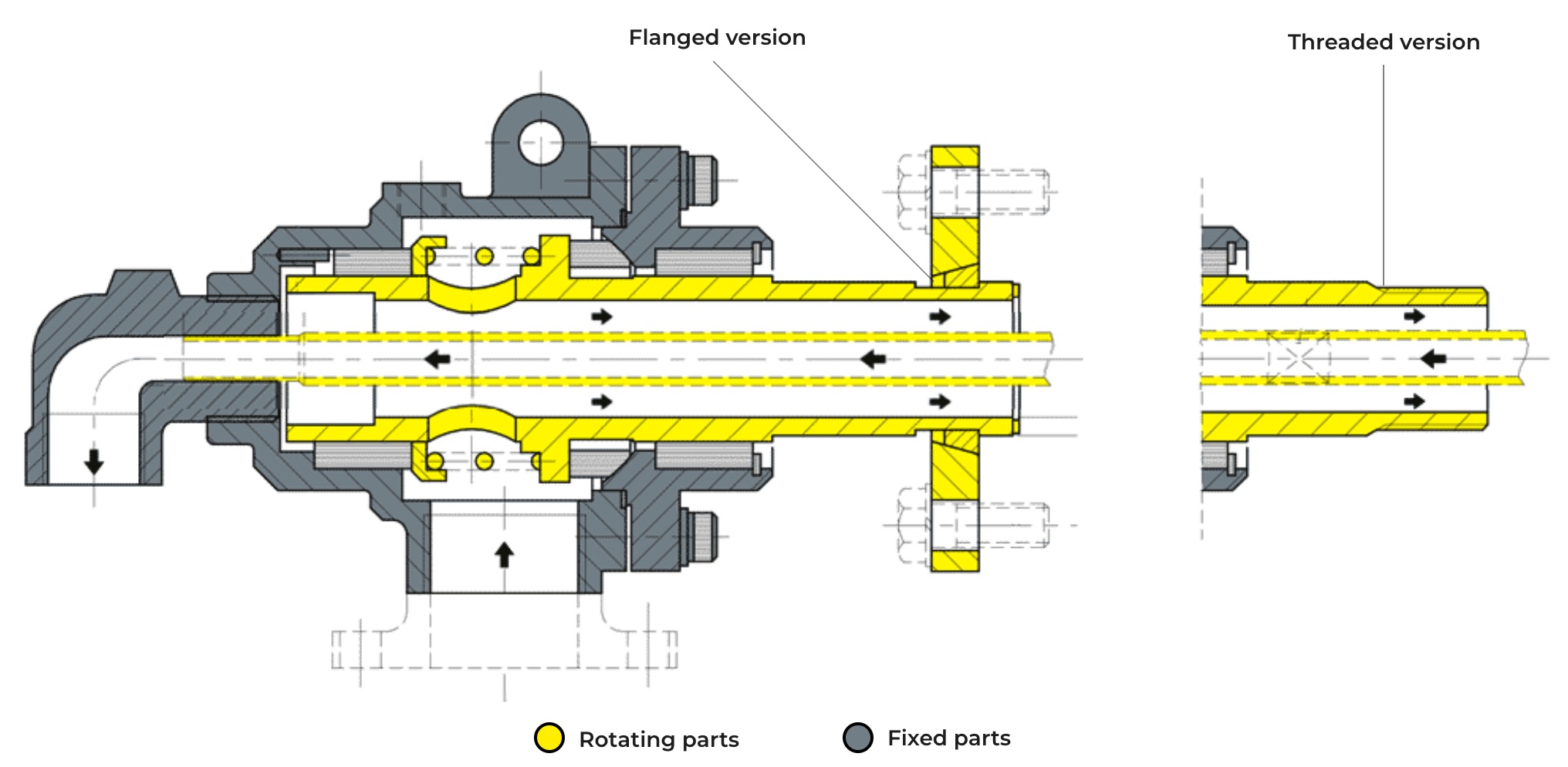

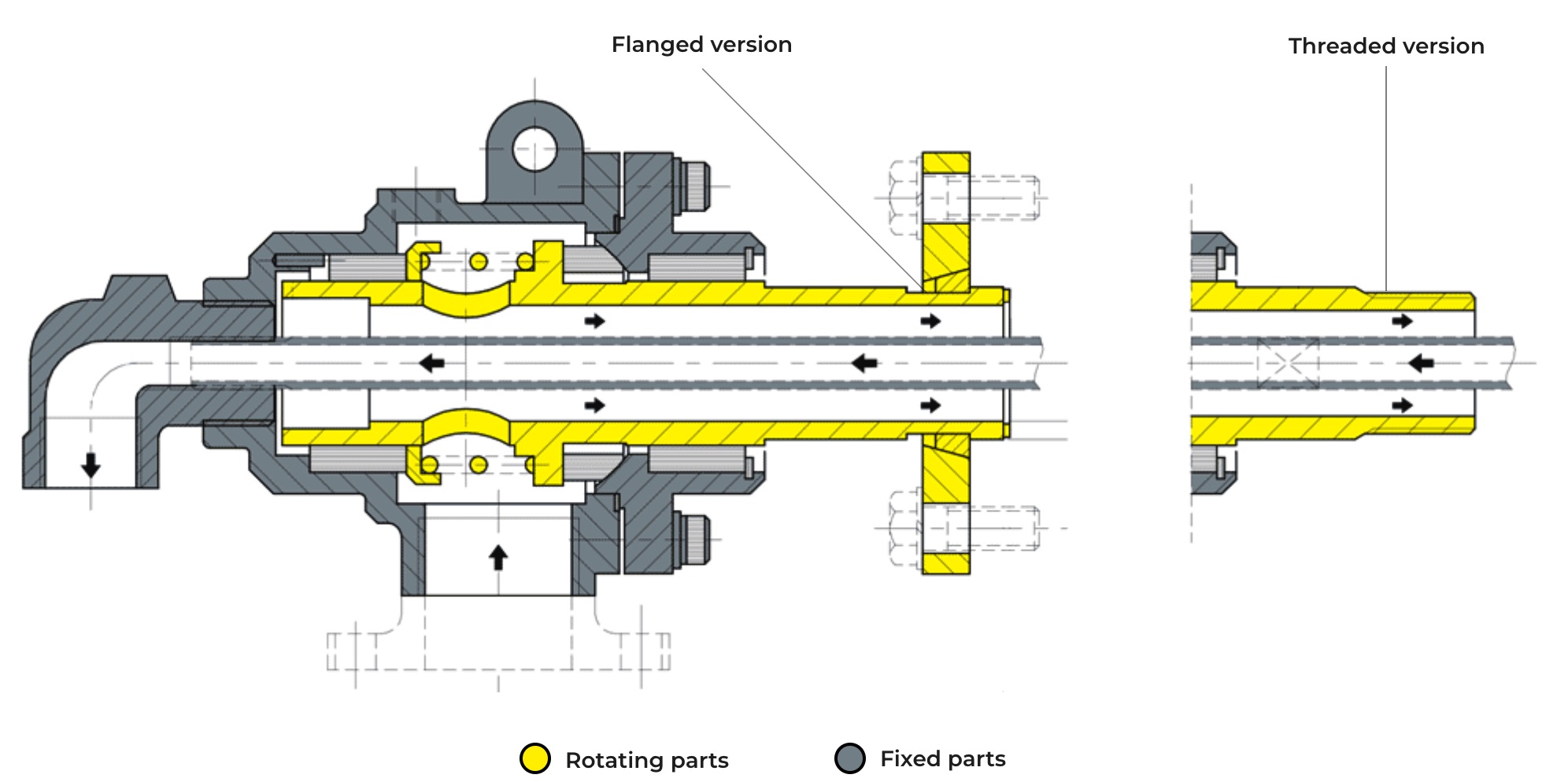

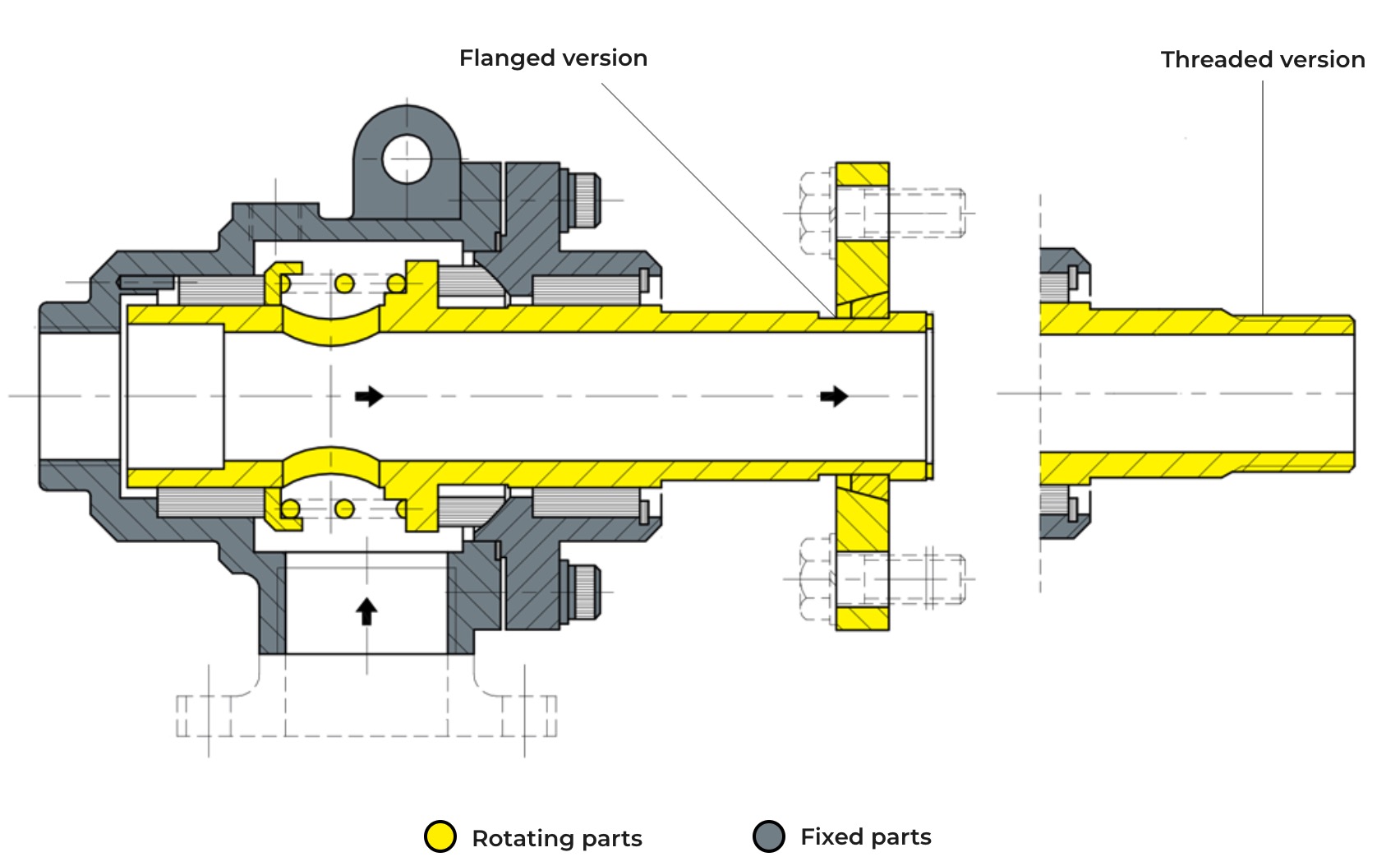

The housing, a fixed part, has cylindrical BSP thread while the shaft, the rotary part, has conical BSP thread.
▪️100% design in Italy
▪️Customizable on request
▪️Special versions for high speeds
▪️Always on stock!
▪️100% design in Italy
▪️Customizable on request
▪️Special versions for high speeds
▪️Always on stock!
