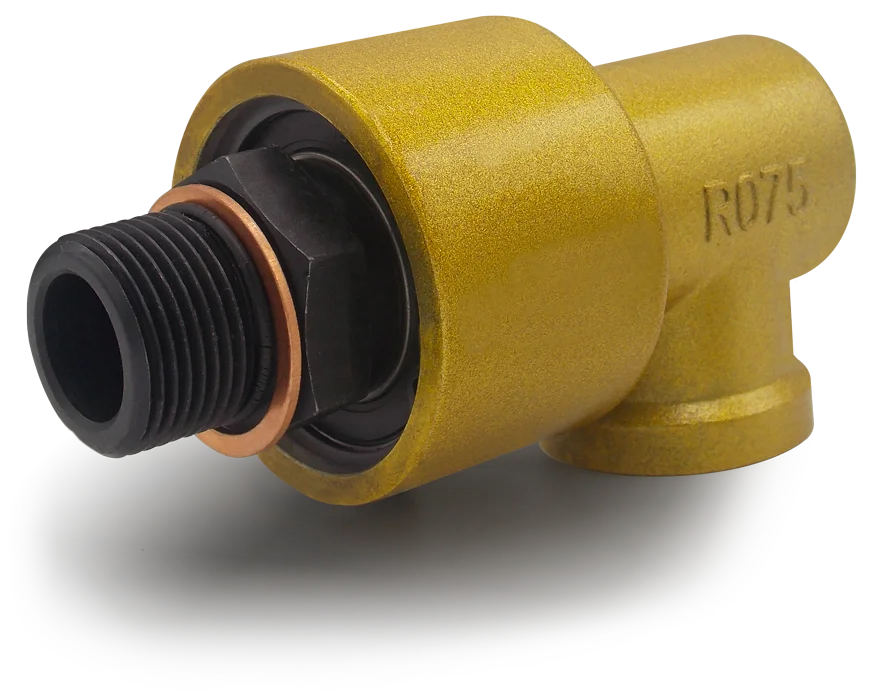

R series
Rotary union for air and
vacuum for high speedness
Rotation (rpm) - Standard versions
3,000
Rotation (rpm) - Special versions
5,000
Max temperature (°C) - Air
80
Max pressure (bar) - Air
11
Max pressure (mm/hg) - Vacuum
700
Main features

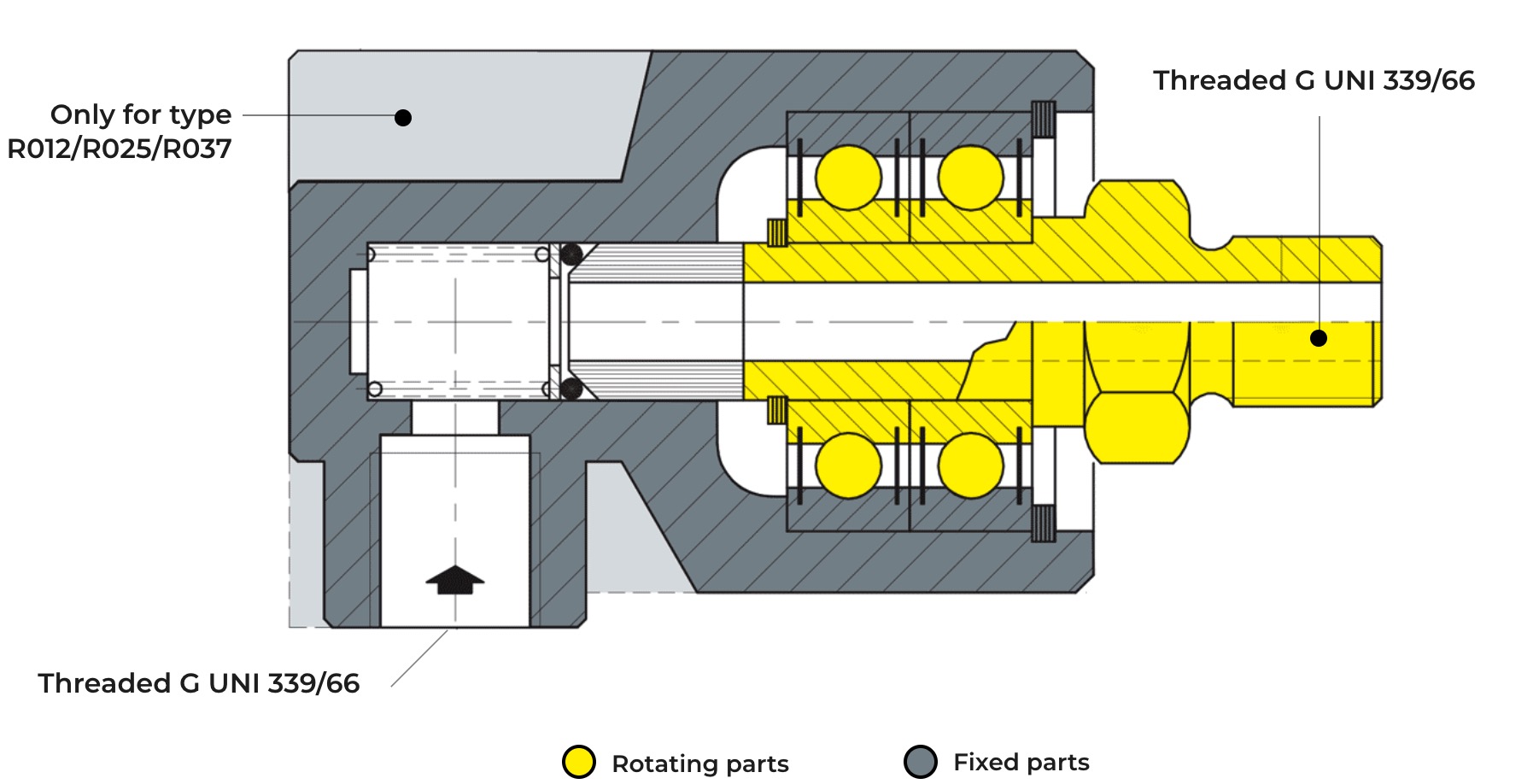

The R Series is designed for air and vacuum and high speed rotation, the seal are made C 45 hardened and ground vs graphite bush for low friction and long lasting.
They are self supported on ball bearings. The housing material is made in aluminum.
They are self supported on ball bearings. The housing material is made in aluminum.
▪️100% made in Italy
▪️Customizable on request
▪️Special versions for speeds over 3,000 rpm
▪️Available threads for different standards
▪️Always on stock!
▪️Customizable on request
▪️Special versions for speeds over 3,000 rpm
▪️Available threads for different standards
▪️Always on stock!
R Series - Rotary union for air and vacuum and high speed rotation
