WA series

Combined Clutch/Brake unit with pneumatic control, wet running

  • Clutch Torque (Nm) 770,000
  • Brake Torque (Nm) 240,000
  • Rotation (rpm) 2,000
  • Bore diameter (mm) 35-400
  • Locking device Allowed
  • Strength High SSPM

Main features

The WA is a series of pneumatic clutch/brake with discs made of sintered material. It has boasts extreme compactness and above all the high number of insertions for the large capacity of heat dissipation. The unit can be fixed to the crankshaft with the keyways or clamping device.
▪️100% design in Italy
▪️Tested before delivery
▪️Customizable on request
▪️Always on stock!

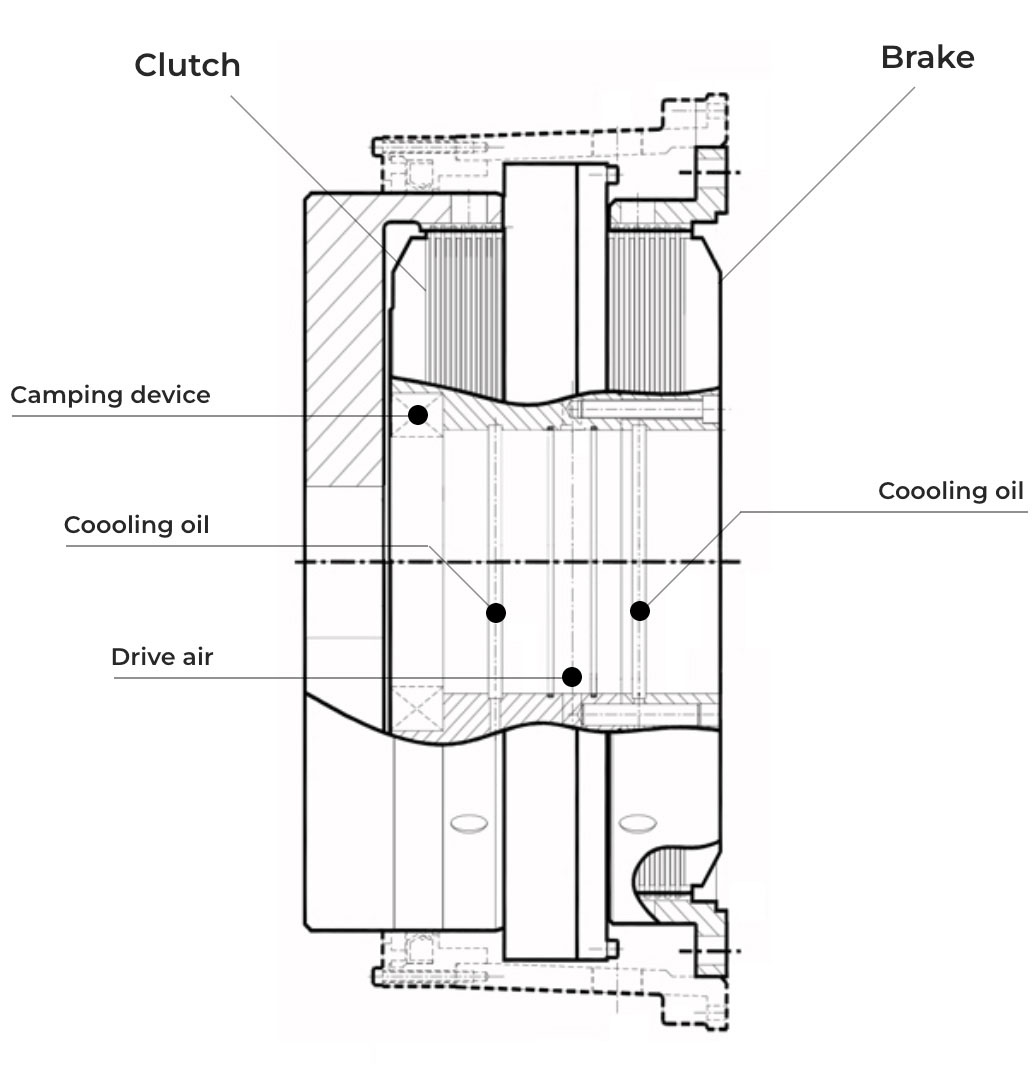

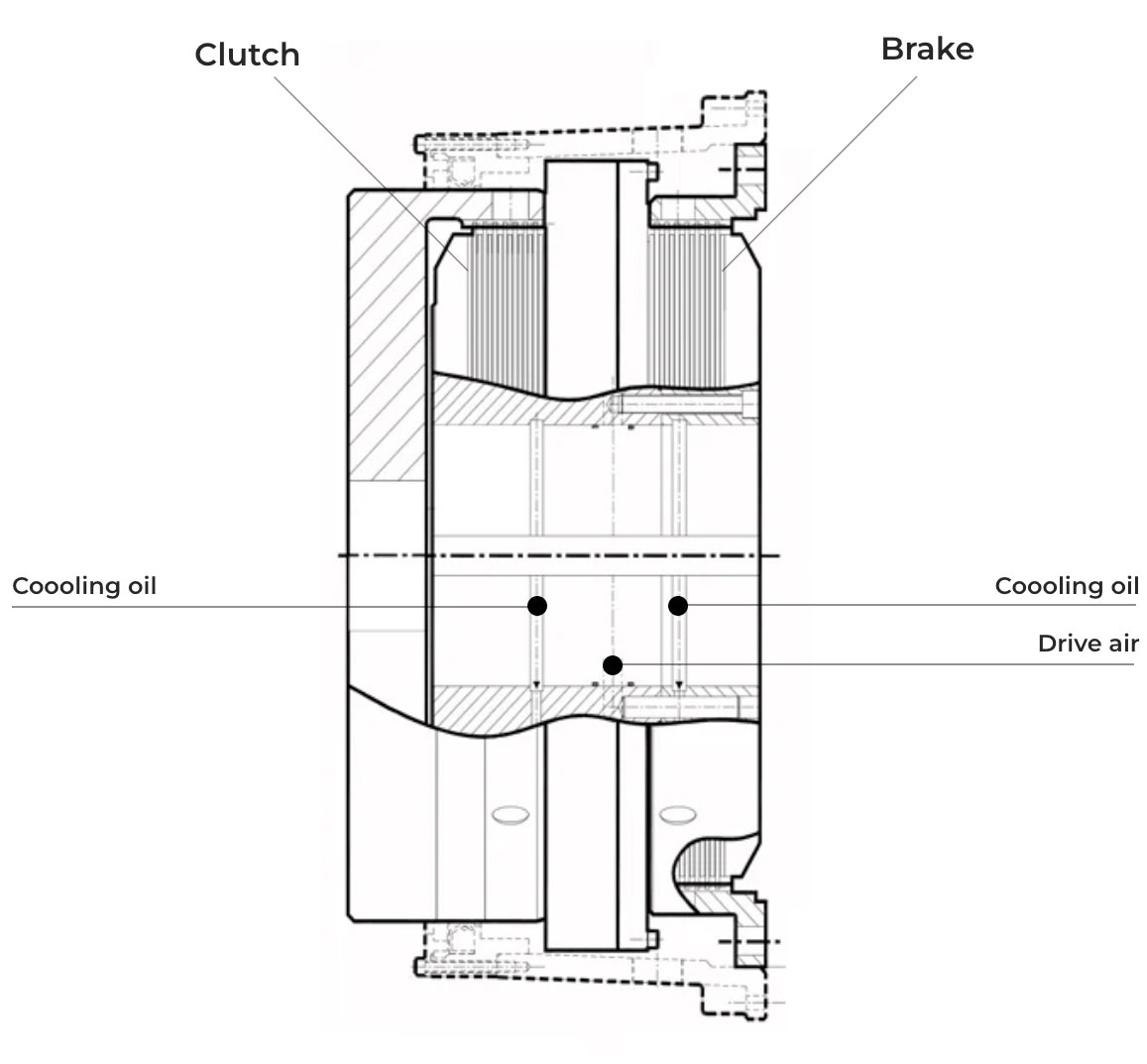

Mounting examples
